AKW Contour ShowerDec Wet Room Floor Former (All Sizes)
AKW stock items ordered before 2pm are dispatched the same working day for next working day delivery. Stock availability is confirmed at the point of order.
AKW Contour ShowerDec Wet Room Floor Former (All Sizes & Waste Options)
The Contour ShowerDec is the strongest wet floor former AKW make — 24mm of compressed SMC-GRP engineered to support up to 100 stone (635kg), making it the go-to former for high-demand wet rooms, wheelchair-accessible bathrooms and assisted installations. Twelve sizes, a built-in fall, and a lifetime warranty: choose your size and waste option below. New to the range? Read our complete ShowerDec buyer's guide.
Which Waste Option Do I Need?

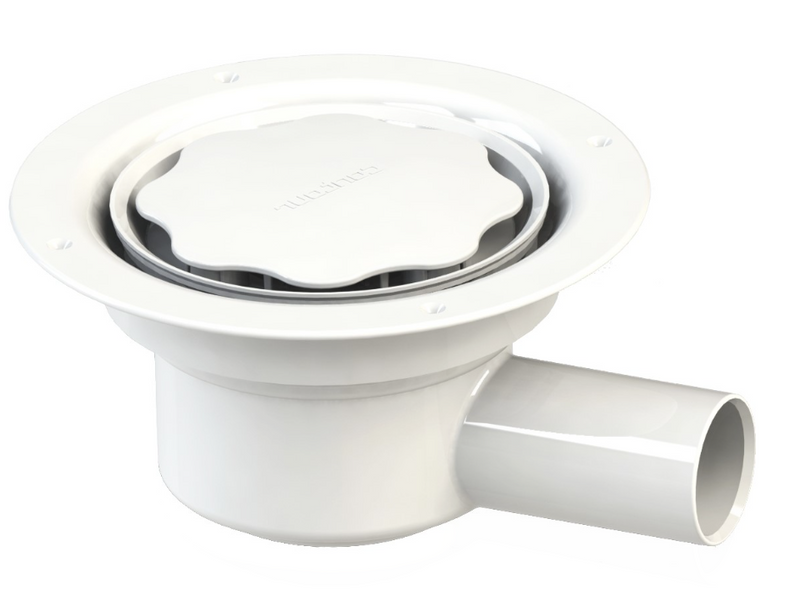

- CTW01 Gravity Shower Trap (08CTW01) — AKW's standard ShowerDec pairing for vinyl safety flooring with gravity drainage; an economical trapped waste.

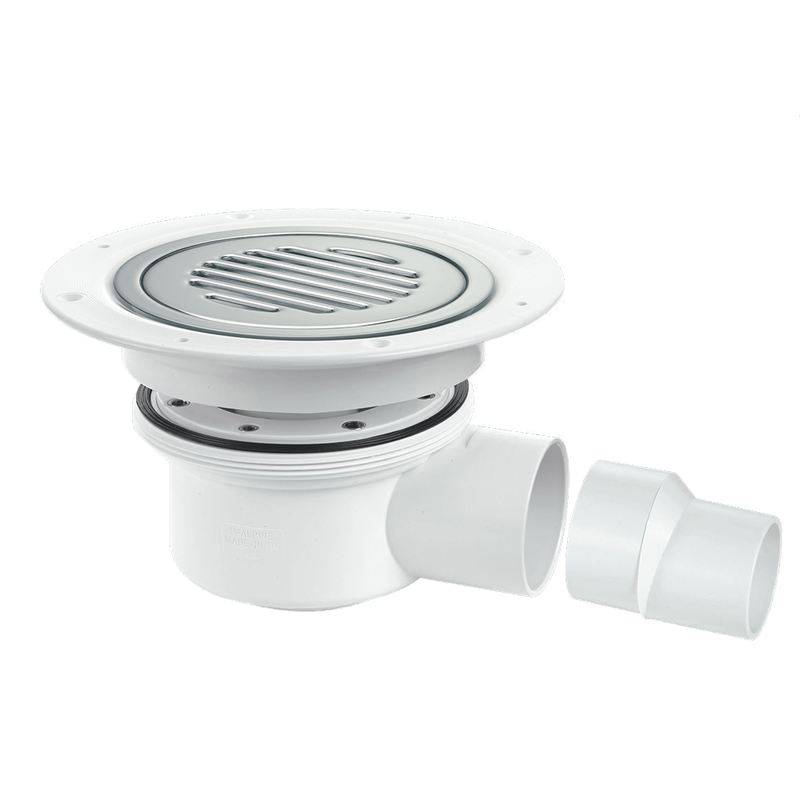

- McAlpine TSG52 50mm Gully (08GT52NSC) — a premium two-piece 50mm water-seal gully for vinyl installs.

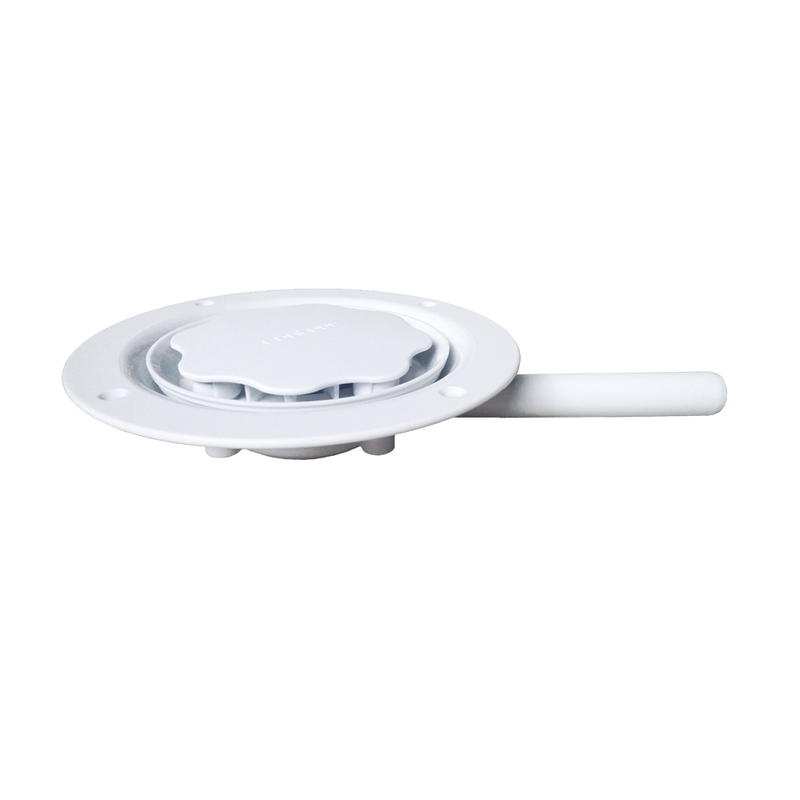

- CUW01 Pumped Waste Trap (08CUW01) — AKW's pumped trap for ShowerDec, for installs where gravity drainage can't run (flats, concrete floors, long pipe runs). Please note: this is the trap only — a compatible shower waste pump is required and sold separately. Contact us and we'll spec the right pump for your installation.
- No Waste — already have a compatible waste, or your installer is specifying separately? Order the former alone.
Tiling over your ShowerDec? That's fully supported with a tanking kit — contact us with your floor build-up and tile choice and we'll confirm the right waste and membrane for your installation.
Key Features:
- Class-leading strength: 24mm thick compressed SMC-GRP supports up to 100 stone (635kg) — the highest capacity in the AKW former range — with no additional support needed around the waste.

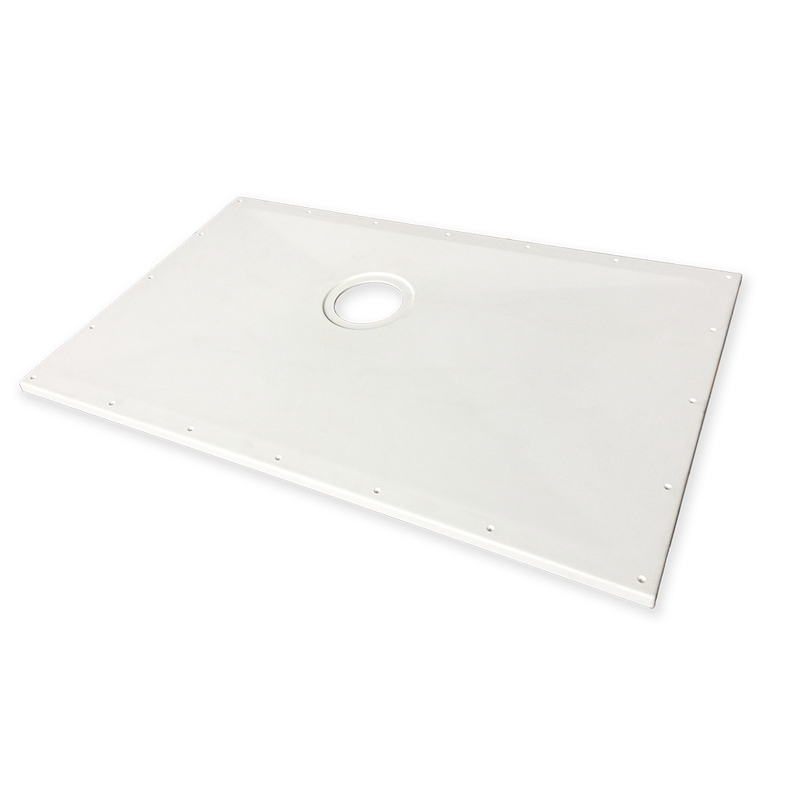

- Excellent drainage: four gradient planes with an approx. 2–2.5° fall to the waste, so water never pools in the showering area.
- Offset waste position: helps avoid joists and pipework; the former is non-handed and can be rotated to suit your room.
- 40mm flat perimeter: a level border around the former for shower screen placement and water retention.
- Vinyl or tiled finishes: textured top surface gives excellent vinyl adhesion; can also be tiled when used with a tanking kit.

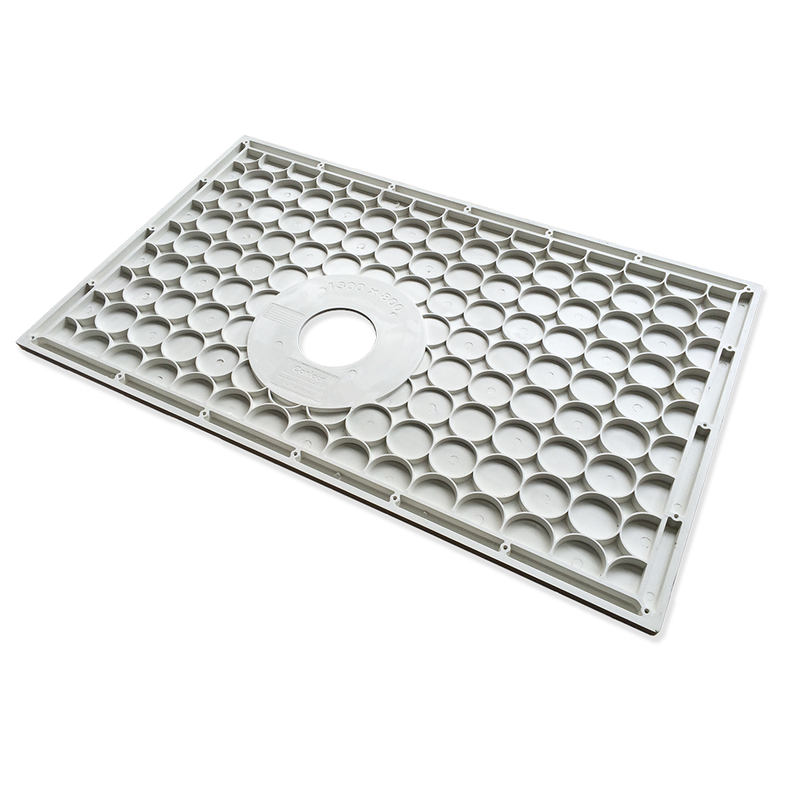

- Timber and screeded floors: 24mm thickness installs flush with standard floorboards; circular ribbed underside keys into concrete or screed and eliminates slippage; no raised collar under the waste for easy timber installs.
- Easy installation: pre-formed semi-drilled fixing points, no noggins needed thanks to extra reinforcement around the waste hole, and cut-to-size with a circular saw or jigsaw.
- Lifetime warranty. UKCA & CE approved.
Available Sizes, Product Codes & Barcodes:
| Size | AKW Product Code | EAN / Barcode |
|---|---|---|
| 900x900mm | SD900x900 | 5060424974085 |
| 1000x1000mm | SD1000x1000 | 5060424974092 |
| 1200x750mm | SD1200x750 | 5060424977932 |
| 1200x900mm | SD1200x900 | 5060424977116 |
| 1200x1200mm | SD1200x1200 | 5060424974115 |
| 1300x800mm | SD1300x800 | 5060424974122 |
| 1400x900mm | SD1400x900 | 5060424974139 |
| 1500x820mm | SD1500x820 | 5060424974146 |
| 1500x1000mm | SD1500x1000 | 5060424974153 |
| 1500x1200mm | SD1500x1200 | 5060424974160 |
| 1800x820mm | SD1800x820 | 5060424974177 |
| 1800x900mm | SD1800x900 | 5060424974184 |
Technical Downloads
Complete the Wet Room
Need up to 25 waste positions instead of an offset waste? See the AKW Tuff Form8 (All Sizes) — or read our Tuff Form8 buyer's guide. Prefer a designer linear waste? The AKW TriForm drains up to 78 litres per minute. Then add a screen:
- AKW standard (PET) wet floor screens — practical, half-height and carer-friendly.
- AKW Silverdale wet floor screens — premium toughened glass.
New to wet rooms? Read our complete guide to AKW wet floor shower screens.
