Whale SDP134T Instant Match Bluetooth Pump Kit

Whale SDP134T Instant Match Bluetooth Pump Kit

Whale SDP134T Instant Match Pump with Bluetooth for Mira Advance Flex Extra Wireless Shower (8.7kW)

The Whale SDP134T Instant Match pump is a cutting-edge solution designed to seamlessly integrate with the Mira Advance Flex Extra Wireless Shower (J09N). Featuring Bluetooth connectivity, this pump automatically adjusts its speed based on the shower's flow rate, minimizing gulley suction noise for a quieter shower experience.

How It Works:

• Automatic Pump Adjustment: The pump receives digital signals from the shower's flow sensor, allowing it to match the flow rate and operate efficiently.
• Timed Shutdown: After the shower is turned off, the pump waits for a pre-set time delay before shutting down. Fifteen minutes later, it briefly runs at a reduced speed to clear any remaining water.
• Dry Run Protection: The pump is designed to run dry without damage, ensuring longevity and reliability.
• Odor Prevention: Non-return valves in the pump head prevent unpleasant smells from entering the bathroom through the waste pipe.

Key Benefits:

• Effective Water Removal: Ideal for situations where gravity drainage is not available, efficiently removing waste water from the shower area.
• Clog-Free Operation: The pump is capable of handling hair, gels, and other shower debris without blocking.
• Maintenance-Free: No internal cleaning is required, as the pump does not have a filter.

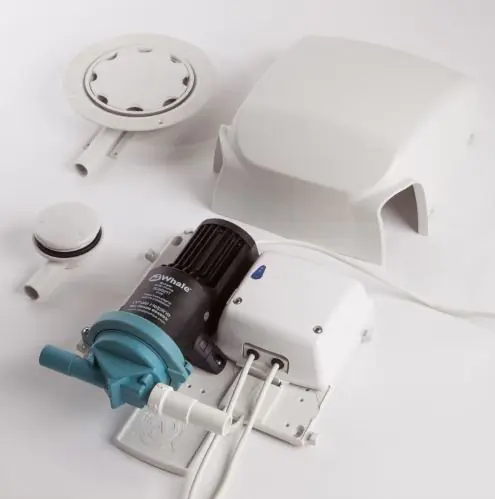

• Easy Installation: Pre-mounted on a backplate, the pump and transformer allow for quick and straightforward installation.
• Versatile Placement: Suitable for installation in zones 1, 2, or 3, with IP45-rated protection against moisture and particle ingress.
• Accessible Controls: The transformer features easy access to jumper settings for adjustments.

Included Shower Wastes:

• 50mm Pumped Shower Tray Gulley: Overall diameter 82mm.
• Pumped Floor Former Waste for Vinyl Flooring: Includes a clamping ring with an overall diameter of 199.80mm.

Technical Details:

• Plug and Play: No setup required, offering seamless operation with the Mira Advance Flex Extra (J09N).
• Power Failure Safety: The shower automatically shuts off in the event of a power failure to the pump.
• Quiet Operation: Features a quiet gulley with a choice of shower tray waste and vinyl floor gulley for floor formers.
• Simple Pairing: Easy Bluetooth pairing with the shower; hard-wiring is also an option if needed.

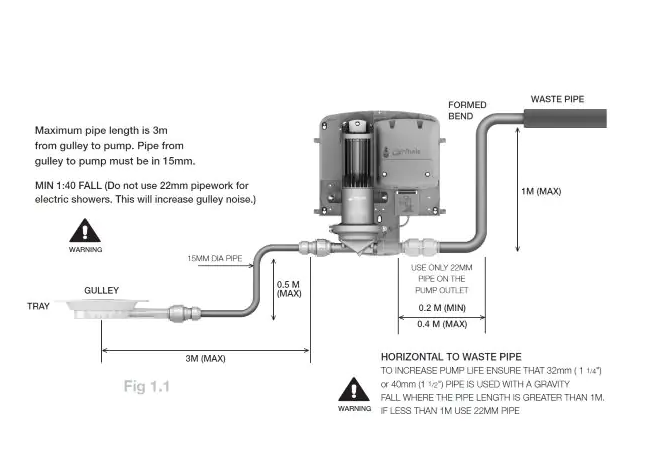

• Flow Requirements: Requires shower bases with a minimum 1:40 fall to the gulley and a maximum flow rate of 8 liters per minute.
• Waste Discharge Compatibility: Can be connected to a macerator pump.

Pump Specifications:

• Product Code: SDS021T
• Dry Running Current: 1.2 amp
• Maximum Head: 1.0m
• Maximum Lift: 500mm
• Combined Head and Lift: 1.5m
• Transformer: Includes patented ActiveLink diagnostics with visual indicators for power and water flow.

Warranty:

• 5-Year Manufacturer's Warranty: Available when registered with Whale within 30 days (otherwise, a 3-year warranty applies).

This high-performance pump system ensures reliable, efficient, and quiet operation, making it an ideal choice for modern shower installations.
